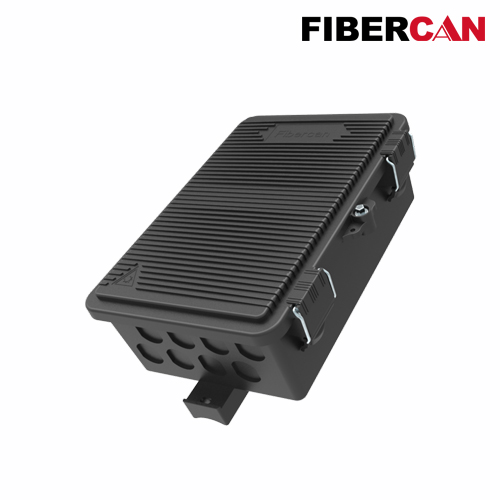

Top hub Enclosure

Product Attributes

Model No.: 809-0204-001

Brand: Fibercan

place of origin: China

Packaging & Delivery

Product Description

1、This closure can be connected through different installation ways such as cross arm hoop,aeriel, underground,wall-mounting etc.

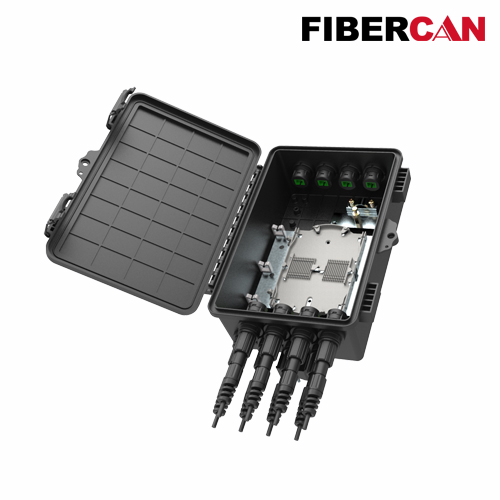

2、Connectors and fibers can be stored in the closure in order,and the number of splicing trays can  be adjusted according to the number of fibers.

3、The closure achieves the functions of protection and connection, it is made of reinforced plastic  with high strength and corrosion resistance.The closure has mature structure, reliable sealing, and  easy for construction.

4、This closure prevents material aging caused by heat, cold, light, oxygen and microorganisms in  nature, and has excellent mechanical strength.

5、It has flame retardant and waterproof function,its strong structure also protects the inner  products from the bad enviroment of vibration, impact and distortion.

Certification

US Patent No.:US 11,686,910 B1

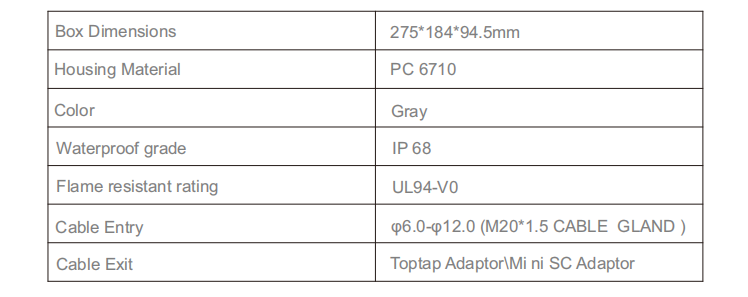

Specifications

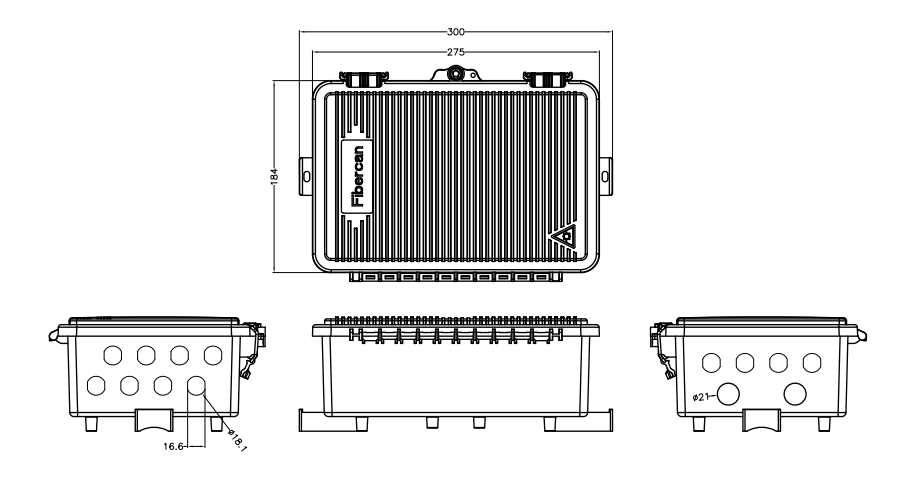

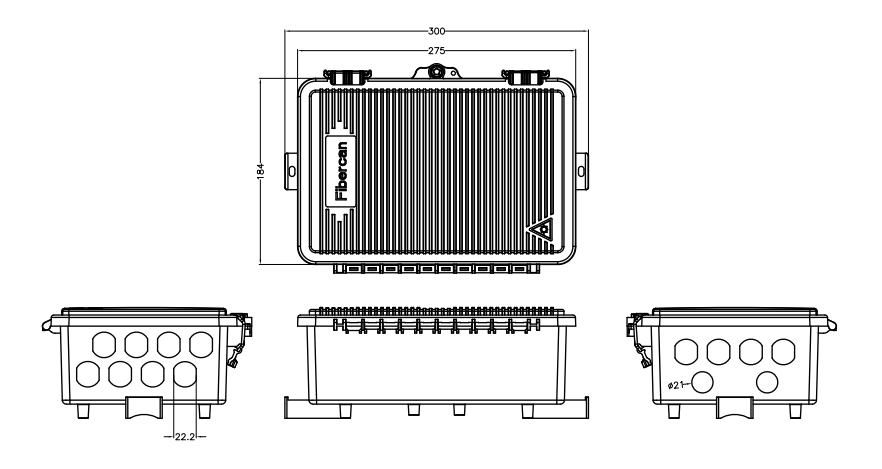

Mechanical Diagram(unit:mm)

Toptap Adaptor:

M-SC Adaptor:

Test procedure

Optical Characteristics

Tensile Test

Thermal Cycling

Proof Test

Thermal Aging

Waterproof test

Other

Other Reuqirement

RoHs-Compliance of item and package

Performance according to GR-326
